Description
EXPAND YOUR VISION!

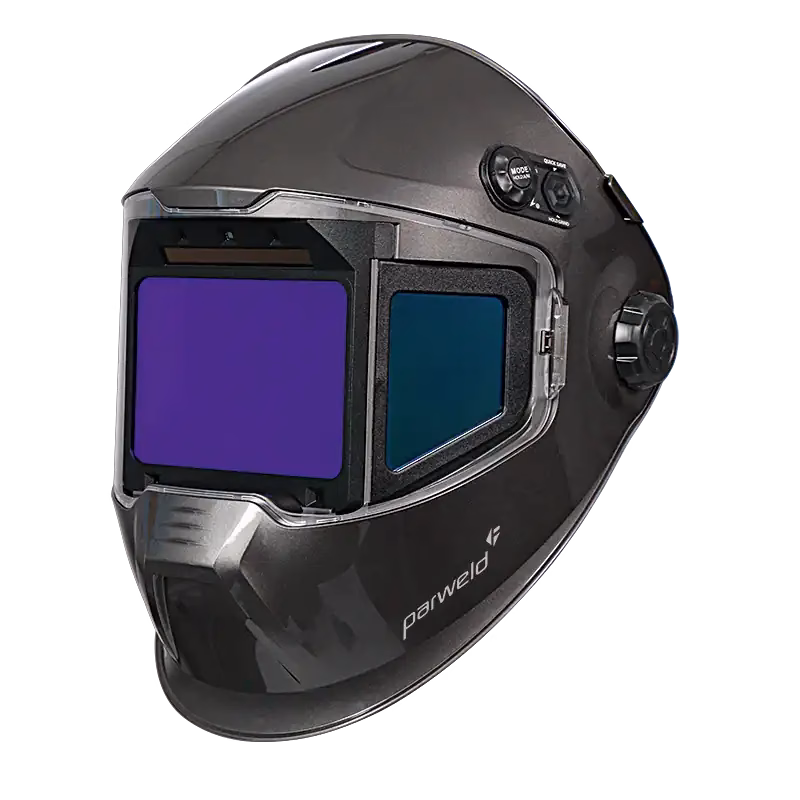

With the XR942 Panoramic Welding and Grinding Helmet from Parweld. Features a Wide Panoramic ADF (180° Internal Vision) to improve peripheral vision, Active Shading Side Windows and Auto Mode to automatically set the shade selection of both the main window view and side windows. The XR942H also features TIS Mode, which slows lightening of ADF to reduce fatigue when undertaking High-Power Welding. Selectors include: Weld Cut Selector, Fast Selector Grind Mode and Manual Shade Adjustment.
Key Features Include:
- Panoramic View
- Active Darkening Side Windows
- Light Shade DIN 3
- Exceptional Optical Clarity
- PLASMA Shades From DIN 4 To DIN 8
- Welding Shades From DIN 9 To DIN 14
- True Colour Lens For More Realistic Vision Of The Weld
- TIS Mode – Reduces Fatigue By Gradually Lightening
- Auto Mode – Automatically Finds The Right Setting
- Tack Mode – Rapid Tacking With Minimal Delay
- 36 Month Warranty
Weight | 0.693 kg |
---|---|
Viewing Size | 116 x 81mm (4.56″ x 3.18″) |
Set Size | Single Piece Set/Item |
Style & Design | Graphite |
Grind Mode | Yes |
External Shade Control | Yes |
Light State | DIN Shade 3 |
Dark State | DIN Shade 4-14 (Variable) |
Dark to Light | 1/30000s |
Sensitivity | External Variable |
UV/IR Protection | Permanent Shade DIN16 |
Power Supply | Built-In Solar Cells and Replaceable Battery Pack |
Minimum Amp Requirement | 5A |
Power On/Off | Fully Automatic |
Storage Temperature | -20ºC to +70ºC (-4ºF to -158ºF) |
Operating Temperature | -5°C to +55°C (4°F to 131°F) |
Relative Humidity | 20% To 80% |
Material | High Impact Polyamide Nylon |
Warranty | 36 months |
Conforms To | BS EN 175, BS EN ISO 16321-1, Impact Rating E (120 m/s) |
